The ITC-402P is not approved for installation in Certified Aircraft.

The ITC-402P is a full feature intercom designed for the pilot with a two place aircraft.  Features like Small Size, Pilot and Copilot Push-to-Talk, Two Auxiliary Audio input, Cellular Phone interface and our exclusive Noise Reduction Technology, make the ITC-402P the ideal choice.  Two Auxiliary inputs are available, one with a muting function and the second that is unmated and is ideal for audible warring devices.

Features

  • Enhanced Noise Reduction Technology
  • Up to 110db of Noise Reduction
  • Built In Cellular Phone Interface
  • Pilot and Copilot PTT
  • Single Volume Control
  • Small Size, 3.1" L x 2.1" W, 1.2" H
  • Two Aux Audio Inputs, one with muting
  • Pilot / All Switch
  • Fail Safe Function
  • 12 to 28 VDC Operation
  • Includes all Microphone, Headphone and connector jacks
  • 2 1/4" Round Face Plate Available *
  • Pre-assembled cables available *
  • Three Year Warranty

ITC-402P Manual, PDF File

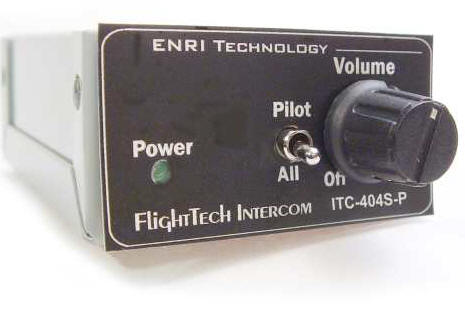

The ITC-404SP is not approved for installation in Certified Aircraft.

The ITC-404SP is the smallest full feature Four Place Stereo intercom available, measuring only 3.1"L x 2.1"W x 1.2"H.  Designed around the exclusive Noise Reduction Technology, squelch controls are eliminated as well as popping audio and background hissing noise.  For long trips or short hops, enjoy true stereo music and to ensure that pilot and passengers conversations or ATC instructions are not missed, the music is automatically muted.

Feature for feature, the ITC-404SP is the ideal choice for a new intercom installation or an upgrade.

Features

  • Enhanced Noise Reduction Technology
  • Up to 110db of Noise Reduction
  • Cellular Phone Interface
  • Pilot and Copilot PTT functions
  • Small Size 3.1" L x 2.1" W x 1.2" H
  • Single Volume Control
  • No Squelch Controls
  • Aux Stereo Audio Input with Muting
  • Pilot / All Switch
  • Automatic Fail Safe
  • 12 to 28 VDC Operation
  • Includes Headphone Jacks and Cable Connector hardware
  • 2 1/4" Round Face Plate Available *
  • Three Year Warranty
  • Pre-assembled 2 and 4 place cables available.*

ITC404SP Manual, PDF File

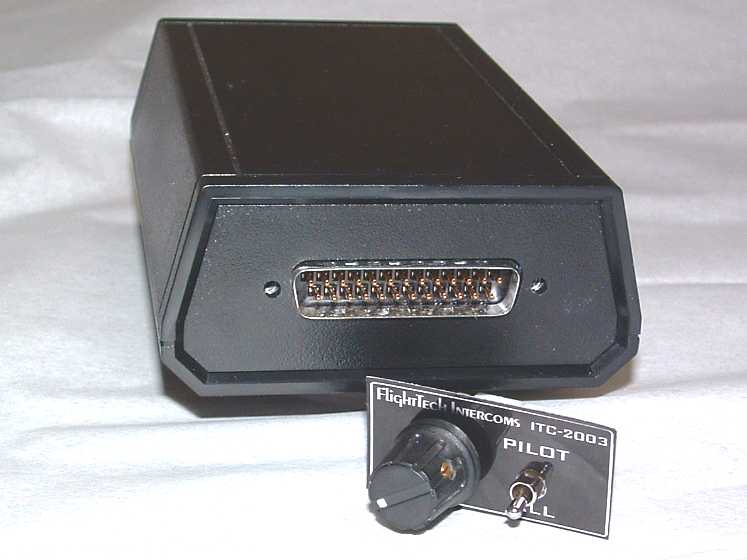

The ITC-2003 is not approved for installation in Certified Aircraft.

The ITC-2003 "Remote" panel mount intercom is ideal for installation with panel space lamination. The ITC-2003 consist of two assemblies, the main intercom electronics and a small "Remote" panel. Features include Stereo Aux Audio input with Muting, Pilot/All function enabling the pilot's headphone to be isolated from the passengers, single volume control and PTT function for Pilot and Copilot.



Features

  • Small Remote Control Panel, 1" x 1" x 1.4"
  • Up to 110db of Noise Reduction
  • Up to Six Stations
  • Auxiliary Stereo Audio Input
  • Automatic Fail Safe Operation
  • Includes Headphone jacks and connector hardware
  • 12 to 28 Volt DC operation
  • Two, Four and Six place Cable Assemblies available *
  • Three Year Warrenty

ITC-2003 Manual, PDF File
